Quiet Vacuum Motors
Quiet Vacuum Motors

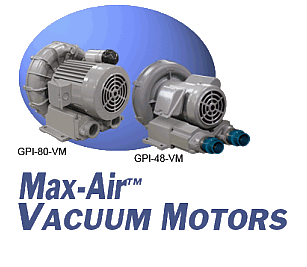

The complete line of Max-Air motors is designed to meet the most critical application requirements. Each features an impeller mounting base and housing manufactured of aluminum alloy for maximum strength, reduced weight and increased corrosion resistance. The compressor and motor are constructed as a unit for mechanical simplicity and maximum structural integrity. The elimination of clutches, gears, belts, and sliding vanes reduces periodic maintenance while increasing reliability.

Easy to retrofit most screen printing presses, camera vacuum backs, vinyl cutting machines and other equipment, by connecting this unit to your present equipment. Once you remove your existing noisy motor and replace it with a Max-Air Quiet Vacuum Motor, the difference you'll "hear" will astound you.

Max-Air Vacuum Motor Literature Sheet



VACUUM MOTORS WITH RELIEF VALVE AND PORT (High volume, Low pressure pumps)
Item Description Electrical

Price / Add To Cart

GPI-VM48-150-R Max-Air Quiet Brushless Vacuum Motor 1/2 HP, 3.85-5.0/1.9-2.5 Amps, 1.5" Port O.D and Relief valve 110-115/220-230V, 1PH 50/60 HZ

Qty EA

GPI-VM48A-150-R Max-Air Quiet Brushless Vacuum Motor 1/2 HP, 1.4-1.7/0.7-0.85Amps, 1.5" Port O.D. and Relief valve 190-240V/380-480V, 3PH 50/60HZ

Qty EA

GPI-VM64-150-R Max-Air Quiet Brushless Vacuum Motor 1 HP, 6.0-8.6/3.0-4.3 Amps, 1.5" Port O.D. and Relief valve 110-115/220-230V, 1PH 50/60 HZ

Qty EA

GPI-VM64A-150-R Max-Air Quiet Brushless Vacuum Motor .72-1.4HP, 3-3.8/1.5-1.8 Amps, 1.5" Port O.D.w/built in Relief valve 200-230V/400-460V, 3PH 50/60 HZ

Qty EA

GPI-VM64-175-R Max-Air Quiet Brushless Vacuum Motor 1 HP, 6.0-8.6/3.0-4.3 Amps, 1.75" Port O.D. and Relief valve 110-115/220-230V, 1PH 50/60 HZ

Qty EA

GPI-VM64A-175-R Max-Air Quiet Brushless Vacuum Motor 1 HP, 3-3.8/1.5-1.8 Amps, 1.75" Port O.D. w/built in Relief valve 200-230V/400-460V, 3PH 50/60 HZ

Qty EA

GPI-VM80-300-R Max-Air Quiet Brushless Vacuum Motor 2.5 HP, 8.5/12 Amps, 3"Port O.D. w/built in Relief valve 200-300V, 1PH 50/60 HZ

Qty EA

GPI-VM80A-300-R Max-Air Quiet Brushless Vacuum Motor 2-2.7 HP, 6.5-7.8/3.7-3.8 Amps, 3" Port O.D. w/built in Relief valve 200-230V/400-460V, 3PH 50/60 HZ

Qty EA

GPI-VM96A-300-R Max-Air Quiet Brushless Vacuum Motor 5 HP, 10.6-13.2/5.3-6.1 Amps, 3" Port O.D. w/built in Relief valve 200-230/400-460V, 3PH 50/60 HZ

Qty EA

GPI-VM112A-300-R Max-Air Quiet Brushless Vacuum Motor 6.7 HP, 13.4-17.6/6.7-8.1 Amps, 3" Port O.D. w/built in Relief valve 200-230/400-460V, 3PH 50/60 HZ

Qty EA

GPI-VM112B-300-R Max-Air Quiet Brushless Vacuum Motor 6.7 HP 6.5Amps, 3" Port O.D. w/built in Relief valve 575V, 3PH 50/60 HZ

Qty EA

GPI-VM128A-300-R Max-Air Quiet Brushless Vacuum Motor 10.7 HP, 20.5-27.8/10.3-12.6 Amps, 3" Port O.D. w/built in Relief valve 200-230/400-460V, 3PH 50/60 HZ

Qty EA

GPI-VM144A-300-R Max-Air Quiet Brushless Vacuum Motor 14.7 HP, 37.8-39.7/18.9-19.9 Amps, 3" Port O.D. and Relief valve 200-230/400-460V, 3PH 50/60 HZ

Qty EA



VACUUM MOTORS WITH PORTS:
       NOTE: Look at motors list above, as relief valves are now standard and are included in many sizes
Item Description Electrical

Price / Add To Cart

GPI-VM32-150 Max-Air Quiet Brushless Vacuum Motor 1/3 HP, 3.0-3.6/1.5-1.8 Amps, 1.5" Port O.D 110-115/220-230V, 1PH 50/60 HZ

Qty EA

GPI-VM48-150 Max-Air Quiet Brushless Vacuum Motor 1/2 HP, 3.8-5.0/1.9-2.5 Amps, 1.5" Port O.D. 110-115/220-230V, 1PH 50/60 HZ

Qty EA

GPI-VM48A-150 Max-Air Quiet Brushless Vacuum Motor 1/2 HP, 1.4-1.7/0.7-0.85 Amps, 1.5" Port O.D. 110-115/220-230V, 3PH 50/60 HZ

Qty EA

GPI-VM64-150 Max-Air Quiet Brushless Vacuum Motor 1 HP, 6.0-8.6/3.0-4.3 Amps, 1.5" Port O.D. 110-115/220-230V, 1PH 50/60 HZ

Qty EA

GPI-VM64A-150 OBSOLETED - SEE P/N GPI-VM64A-150-R

Qty EA

GPI-VM64-175 Max-Air Quiet Brushless Vacuum Motor 1 HP, 6.0-8.6/3.0-4.3 Amps, 1.75" Port O.D. 110-115/220-230V, 1PH 50/60 HZ

Qty EA

GPI-VM64A-175 OBSOLETED - SEE P/N GPI-VM64A-175-R

Qty EA

GPI-VM64-300 Max-Air Quiet Brushless Vacuum Motor 1 HP, 6.0-8.6/3.0-4.3 Amps, 3"Port O.D. 110-115/220-230V, 1PH 50/60 HZ

Qty EA

GPI-VM80-300 Max-Air Quiet Brushless Vacuum Motor 2.5 HP, 8.5/12 Amps, 3" Port O.D. 200-300V, 1PH 50/60 HZ

Qty EA

GPI-VM80A-300 OBSOLETED - SEE P/N GPI-VM80A-300-R

Qty EA

GPI-VM96A-300 OBSOLETED - SEE P/N GPI-VM96A-300-R

Qty EA

GPI-VM112A-300 OBSOLETED - SEE P/N GPI-VM112A-300-R

Qty EA

GPI-VM112B-300 OBSOLETED - SEE P/N GPI-VM112B-300-R

Qty EA

GPI-VM128A-300 OBSOLETED - SEE P/N GPI-VM128A-300-R

Qty EA

GPI-VM144A-300 OBSOLETED - SEE P/N GPI-VM144A-300-R

Qty EA
