U-Clamp Replacement Parts

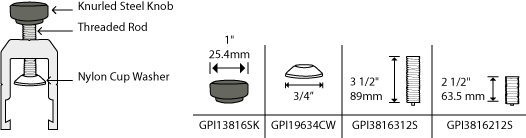

If a component of your u-clamp or frame clamp is defective or worn, replacement parts can be ordered below. GPI manufactures these components to the highest standards and workmanship. *When replacing the steel knob, GPI recommends using Loctite® to adhere the knob to the threaded rod.

Item	Description	Add To Cart
GPI13816SK	1" (25.4 mm) Steel knurled knob	Qty EA NULL
GPI3816312S	3-1/2" (89 mm) Threaded Rod	Qty EA NULL
GPI3816212S	2-1/2" (65.5 mm) Threaded Rod (Standard length for U-Clamps)	Qty EA NULL
GPI96434CW	Nylon Cup Washer	Qty EA NULL
U-Clamp Assemblies

U-Clamp Replacement Extrusion

Item	Equipment Manufacturer	Holding Bar Dimensions	Add To Cart
UCRE-GAO	A.W.T.	1" (25.4 mm)	Qty EA NULL
UCRE-GA1	American	1" (25.4 mm)	Qty EA NULL
UCRE-GM1	M&M	1" (25.4 mm)	Qty EA NULL
UCRE-GM2	M&R	1" (25.4 mm)	Qty EA NULL
UCRE-GS1	Svecia	2" (50.8 mm)	Qty EA NULL
UCRE-GS2	Sias	1" (25.4 mm)	Qty EA NULL
UCRE-GA8	Anatol	1" (25.4 mm)	Qty EA NULL
The above parts can be used on any 1" (25.4mm) or 2 (50.8mm)" holding bar. Don't see what you need or your equipment manufacturer? GPI adds parts on a daily basis, give us a call. (800) 444-PART
