Panel Potentiometers - GPI: Screen Printing Replacement Parts

Replacement Parts and Remanufacturing Services for Screen Printer

Main > Potentiometers > Panel Potentiometers

J. Series Style Potentiometers

LINEAR TAPER (Hot Molded plain 3/8" long bushing, 7/8" long by 1/4" slotted shaft. Temperature range for all units is -55° to 120° C. All units include one mounting nut and one lock washer.)

Item	Type	Ohmic Value	Add To Cart
GPI0100OHM	JAIN056S101UA	100	Qty EA NULL
GPI0150OHM	JAIN056S151UA	150	Qty EA NULL
GPI0200OHM	JAIN056S201UA	200	Qty EA NULL
GPI0250OHM	JAIN056S251UA	250	Qty EA NULL
GPI0500OHM	JAIN056S501UA	500	Qty EA NULL
GPI0001KP	JAIN056S102UA	1.0K	Qty EA NULL
GPI0002KP	JAIN056S202UA	2.0K	Qty EA NULL
GPI0003KP	JAIN056S252UA	2.5K	Qty EA NULL
GPI0004KP	JAIN056S352UA	3.5K	Qty EA NULL
GPI0005KP	JAIN056S502UA	5.0K	Qty EA NULL
GPI0006KP	JAIN056S103UA	10K	Qty EA NULL
GPI0007KP	JAIN056S153UA	15K	Qty EA NULL
GPI0008KP	JAIN056S203UA	20K	Qty EA NULL
GPI0009KP	JAIN056S253UA	25K	Qty EA NULL
GPI0010KP	JAIN056S353UA	35K	Qty EA NULL
GPI0011KP	JAIN056S503UA	50K	Qty EA NULL
GPI0012KP	JAIN056S753UA	75K	Qty EA NULL
GPI0013KP	JAIN056S104UA	100K	Qty EA NULL
GPI0014KP	JAIN056S154UA	150K	Qty EA NULL
GPI0015KP	JAIN056S204UA	200K	Qty EA NULL
GPI0016KP	JAIN056S254UA	250K	Qty EA NULL
GPI0017KP	JAIN056S354UA	350K	Qty EA NULL
GPI0018KP	JAIN056S504UA	500K	Qty EA NULL
GPI0019KP	JAIN056S754UA	750K	Qty EA NULL
GPI0020KP	JAIN056S105UA	1.0M	Qty EA NULL
GPI0021KP	JAIN056S205UA	2.0M	Qty EA NULL
GPI0022KP	JAIN056S255UA	2.5M	Qty EA NULL
GPI0023KP	JAIN056S355UA	3.5M	Qty EA NULL
GPI0024KP	JAIN056S505UA	5.0M	Qty EA NULL

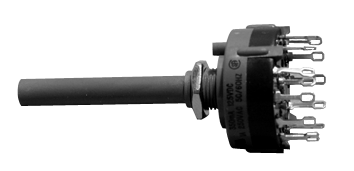

PANEL POTENTIOMETERS - DUAL LINEAR (3/8" long plain bushing. 2" long, 1/4" dia. plain end shaft.)

Item	Type	Ohmic Value	Add To Cart
GPI0020DK	JD1N200P251UA	250K	Qty EA NULL
GPI0021DK	JD1N200P501UA	500K	Qty EA NULL
GPI0022DK	JD1N200P102UA	1.0K	Qty EA NULL
GPI0023DK	JD1N200P252UA	2.5K	Qty EA NULL
GPI0024DK	JD1N200P502UA	5.0K	Qty EA NULL
GPI0025DK	JD1N200P103UA	10K	Qty EA NULL
GPI0026DK	JD1N200P253UA	25K	Qty EA NULL
GPI0027DK	JD1N200P503UA	50K	Qty EA NULL
GPI0028DK	JD1N200P104UA	100K	Qty EA NULL
GPI0029DK	JD1N200P201UC	200K	Qty EA NULL

PANEL POTENTIOMETERS - LINEAR TAPER (1/2" Locking bushing; 5/8" long, 1/4" dia. slotted shaft.)

Item	Type	Ohmic Value	Add To Cart
GPI0030DK	JAIL040S101	100	Qty EA NULL
GPI0031DK	JAIL040S501	500	Qty EA NULL
GPI0032DK	JAIL040S102	1.0K	Qty EA NULL
GPI0033DK	JAIL040S252	2.5K	Qty EA NULL
GPI0034DK	JAIL040S352	3.5K	Qty EA NULL
GPI0035DK	JAIL040S502	5.0K	Qty EA NULL
GPI0036DK	JAIL040S103	10K	Qty EA NULL
GPI0037DK	JAIL040S503	50K	Qty EA NULL
GPI0038DK	JAIL040S254	250K	Qty EA NULL
